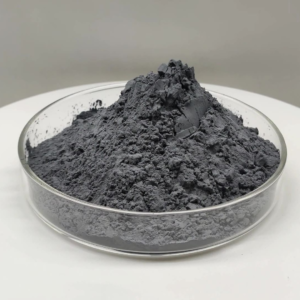

CRYSTALLINE BORON POWDER
The crystal type of boron is mainly β-shaped, and the β-shaped and γ-shaped cubes are synthesized to form a fixed crystal structure. The color is usually taupe powder or brown particles with irregular shape.
The company is specialized in the production of CRYSTALLINE boron source manufacturers, but also the invention of CRYSTALLINE boron production technology research and development units. The regular particle size of the CRYSTALLINE boron powder produced by our company is 15-60μm; The conventional grain size of CRYSTALLINE boron particles is 1-10mm (special grain size can be customized according to customer needs), generally divided into 2N, 3N, 4N, 5N, 6N five specifications according to the purity.
TYPICAL SIZE
| BORON CONTENT | TYPICAL SIZE |
| 99 | 1-5UM 10-30UM 50-100UM |
| 99.9 | -200MESH 0-10UM 1-10MM |
| 99.99 | -200MESH 1-10MM |
| 99.999 | |
| 99.9999 |
2N CRYSTALLINE BORON
| B | FE | AU | AG | CU | SN | MN | PB |
| % MIN | PPM MAX | ||||||
| 99 | 500 | 2.5 | 1 | 12 | 30 | 300 | 0.08 |
Packaging: Usually packed in vacuum aluminum foil bag, the size is 1kg/5kg (nano powder only sealed, no vacuum)
3N CRYSTALLINE BORON
| B | FE | AU | AG | CU | SN | MN | PB | CA |
| % MIN | PPM MAX | |||||||
| 99.9 | 200 | 0.08 | 0.8 | 10 | 9 | 3 | 0.3 | 18 |
Packaging: powder-type CRYSTALLINE boron packaging is usually packed in vacuum aluminum foil bag, the specification is 1kg/5kg/ bag; Granular CRYSTALLINE boron packaging is generally polytetrafluoroethylene bottle, filled with inert gas protection, specifications for 50g/500g/1000g/ bottle.
4N CRYSTALLINE BORON
| B | FE | AU | AG | CU | SN | MN | PB | CA |
| % MIN | PPM MAX | |||||||
| 99.99 | 90 | 0.06 | 0.3 | 0.1 | 0.1 | 1.2 | 1.1 | 0.2 |
Packaging: Usually PTFE bottle, filled with inert gas seal, size 50g/100g/ bottle;
5N CRYSTALLINE BORON
| B | FE | AU | AG | CU | SN | MN | CA | AS | PB | W | GE |
| % MIN | PPM MAX | ||||||||||
| 99.999 | 8 | 0.02 | 0.03 | 0.03 | 0.1 | 0.1 | 0.1 | 0.08 | 0.08 | 0.05 | 0.05 |
Packaging: Usually PTFE bottle, filled with inert gas seal, size 50g/100g/ bottle;
6N CRYSTALLINE BORON
| B | FE | AU | AG | CU | SN | MN | CA | AS | PB | W | GE |
| % MIN | PPM MAX | ||||||||||
| 99.9999 | 0.5 | 0.02 | 0.03 | 0.03 | 0.08 | 0.07 | 0.01 | 0.01 | 0.02 | 0.02 | 0.04 |
Packaging: Usually PTFE bottle, filled with inert gas seal, size 50g/100g/ bottle;
